Selecting tramline rhythm

MA_

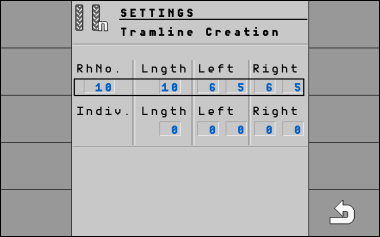

"Settings / Tramline" screen for a seeder

RhNo.	Tramline rhythm number
Length	Number of passes before the tramline rhythm is repeated.
Left, right	This shows the passes in which the "left" or "right" seed tubes are closed in order to create a tramline. Up to two pass numbers can be entered for each direction.
Indiv	Here you can define your own tramline rhythm.

Procedure

This is how to select the proper tramline rhythm:

þ: You know the working width of your implement.

þ: You know the working width of your sprayer.

þ: You know which side of your seeder is used to create tramlines and how many tramline mechanisms your seeder has on each side.

1.: Decide whether you want to start working on the left or the right field edge.

2.: Perform the following calculation:
Working width of the sprayer:Working width of the seeder
e.g.: 12:3=4; 15:3=5 or 20:3=6.67

⇨: The following results are possible: Even numbers (2; 4; 6; etc.), uneven numbers (3; 5; 7; etc.) and decimals (1.5; 4.5; 5.33; etc.)

⇨: Depending on the result, you have to select a different tramline rhythm. You can find the results in the "Results of the calculation" column in the following chapters.

3.: Find out which section contains the proper tramline rhythm for you.

⇨: Even numbers - Even tramline rhythms

⇨: Uneven numbers - Uneven tramline rhythms

⇨: Decimal numbers - Special tramline rhythms

4.: Select the table with the proper rhythm numbers in the chapters mentioned in step 3. The tables can differ depending on the side of the seeder that is used to create the tramlines, the number of tramline mechanisms on the seeder and the working start.

5.: On the work screen, press:
>

⇨: The "Settings / Tramlines" screen appears.

6.: Select the proper rhythm number.
OR
Enter an individual tramline rhythm if the rhythm number indicated in the table is "999".

⇨: You can start working.

Further information

•: Creating an even tramline rhythm

•: Creating uneven tramline rhythms

•: Creating special tramline rhythms
