Creating special tramline rhythms

Special tramline rhythms are always created in four tracks. Special tramline rhythms can only be created if the tramlines are created with both sides of the seeder.


▪
There is one tramline mechanism on one side of the seeder and two tramline mechanisms on the other side of the seeder.
▪
Two tramline mechanisms are installed on both sides of the seeder.



Example



 Spezieller Rhythmus


▪

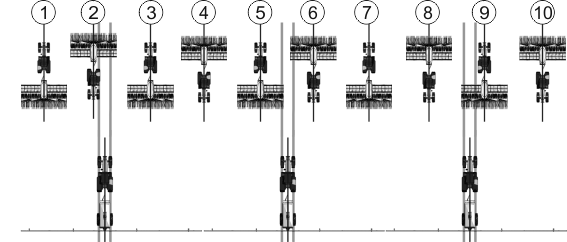

The figure shows tramline rhythm 20.
▪
The tramlines are created during tracks 2, 5, 6 and 9. (ex.: working width of the sprayer = 20m, working width of the seeder = 6m)


Working start at the left field edge
Possible position of the flaps
Result of the calculation
RhNo.
Length
Left
Right
1.33
999
4
3
2
1
4
1.5
22
6
4
3
6
1
2.5
16
10
7
4
9
2
2.67
999
8
5
4
7
2
3.33
20
10
9
2
6
5
3.5
28
14
13
2
9
6
4.5
18
18
16
3
12
7
4.67
999
14
3
12
7
8
5.33
24
16
9
8
14
3
5.5
999
22
14
9
3
20
6.67
999
20
10
11
4
17
7.5
30
30
27
4
19
12
9.33
999
28
14
15
2
24


Working start at the right field edge
Possible position of the flaps
Result of the calculation
RhNo.
Length
Left
Right
1.33
999
4
1
4
3
2
1.5
23
6
6
1
4
3
2.5
15
10
9
2
7
4
2.67
999
8
7
2
5
4
3.33
21
10
6
5
9
2
3.5
29
14
9
6
13
2
4.5
19
18
12
7
16
3
4.67
999
14
7
8
3
12
5.33
25
16
14
3
9
8
5.5
999
22
3
20
14
9
6.67
999
20
4
17
10
11
7.5
31
27
19
12
27
4
9.33
999
28
2
24
14
15
