Operating the implement on the fieldUsing tramline controlSelecting tramline rhythmCreating an even tramline rhythm


Creating an even tramline rhythm

Two even tramline rhythms can be created during one or two passes.


▪
In one pass if the tramlines are created on both sides of the seeder.
▪
In two passes if the tramlines are created on one side of the seeder and a tramline mechanism is installed on the side.
▪
In one pass if the tramlines are created on one side of the seeder and two tramline mechanisms are installed on the side.


Creating tramlines on both sides of the seeder simultaneously



Example



 Gerader Rhythmus, symmetrisch


▪

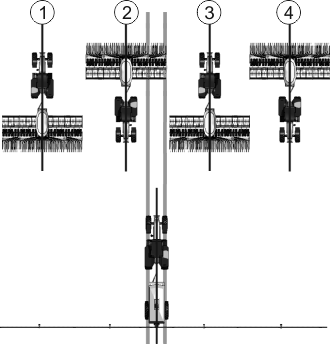

The figure shows the 4S tramline rhythm.
▪
The tramlines are created during track 2. (ex.: working width of the sprayer = 12 m, working width of the seeder = 3 m)
▪
Track 0 must be performed separately. To avoid overlapping, use the "Half width shutoff system" function.
▪
The tramline control must be deactivated for track 0.


Possible position of the flaps
Result of the calculation
RhNo.
Length
Left
Right
2
2S
2

1

1
4
4S
4

2

2
6
6S
6

3

3
8
8S
8

4

4
10
10S
10

5

5
12
12S
12

6

6
14
999
14

7

7


Creating tramlines on one side of the seeder and with only one tramline mechanism



Example



 Gerader Rhythmus, asymmetrisch


▪

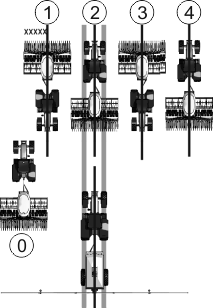

The figure shows an individual tramline rhythm.
▪
The tramlines are created during tracks 2 and 3. (ex.: working width of the sprayer = 12 m, working width of the seeder = 3 m)


Working start at the left field edge
Possible position of the flaps
Result of the calculation
RhNo.
Length
Left
Right
2
999
2


1
2
4
999
4
2
3


6
999
6


3
4
8
999
8
4
5


10
999
10


5
6
12
999
12
6
7


14
999
14


7
8


Working start at the right field edge
Possible position of the flaps
Result of the calculation
RhNo.
Length
Left
Right
2
999
2
1
2


4
999
4


2
3
6
999
6
3
4


8
999
8


4
5
10
999
10
5
6


12
999
12


6
7
14
999
14
7
8




Creating tramlines on one side of the seeder and with two tramline mechanisms



Example



 Gerader Rhythmus, 2 Motoren eine Seite


▪

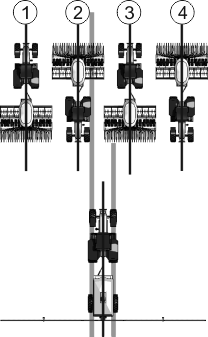

The figure shows an individual tramline rhythm.
▪
The tramlines are created during track 2. (ex.: working width of the sprayer = 24m, working width of the seeder = 6m)


Working start at the left field edge
Possible position of the flaps
Result of the calculation
RhNo.
Length
Left
Right
 Beide_1,5  Beide_1,875  Beide_2,25
2
999
2



1
4
999
4

2


 Beide_1,5
6
999
6



3


Working start at the right field edge
Possible position of the flaps
Result of the calculation
RhNo.
Length
Left
Right
 Beide_1,5  Beide_1,875  Beide_2,25
2
999
2

1


4
999
4



2
 Beide_1,5
6
999
6

3
