Creating uneven tramline rhythms

Uneven tramline rhythms are always created in one track. Uneven tramline rhythms can only be created if the tramlines are created with both sides of the seeder.



Example



 Ungerader Rhythmus


▪

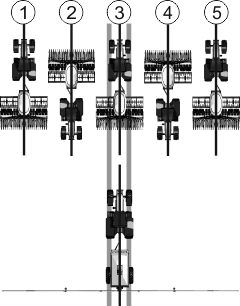

The figure shows tramline rhythm 5.
▪
The tramlines are created during track 3. (ex.: working width of the sprayer = 15m, working width of the seeder = 3 m)


Possible position of the flaps
Result of the calculation
RhNo.
Length
Left
Right
 Links_rechts_innen
3
3
3

2

2
 Links_rechts_innen
5
5
5

3

3
 Links_rechts_innen
7
7
7

4

4
 Links_rechts_innen
9
9
9

5

5
 Links_rechts_innen
11
11
11

6

6
