Initial start-up
For the initial start-up, you must switch on and configure the terminal.
Procedure
- 1.
- Connect the terminal to the tractor ISOBUS.
for two seconds.- ⇨
- The terminal will boot.
- ⇨
- Each time the terminal is booted, it checks whether unknown job computers are connected to the ISOBUS. If yes, the terminal then copies the information from the job computer. This can take a few minutes. In the meantime, the message "Loading..." is displayed
- ⇨
- If a joystick or other operating device is detected, you will be requested to confirm the button assignment. Because there is no button assignment yet with the initial start-up, confirm the button assignment to be able to continue working.

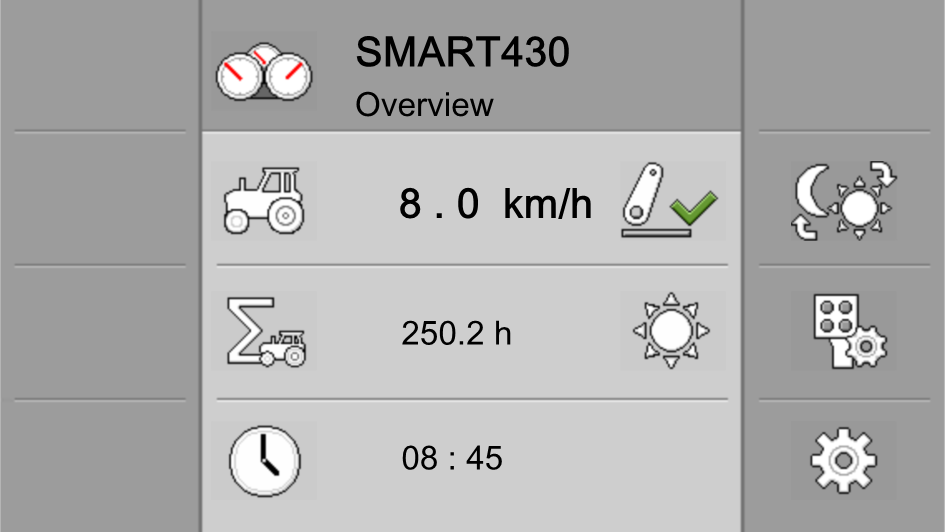

- Keep pressing this key until the following screen appears:
- ⇨
- In this application, you can enter the basic settings. For example: Language, Date, Time, System of units. See also: Configuration of the terminal
- 4.
- Configure the above-mentioned settings.
- ⇨
- You have configured the terminal. Read the app instructions to see whether other application-specific settings are required.
