Connecting the camera HQ2

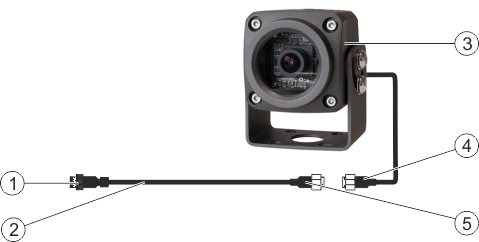

Camera HQ2 - Connection to the Touch Terminal
Connector for connection to the terminal.
CAM port
Camera HQ2
Extension cable
Camera connector


Connector for the camera plug



Procedure



1.
Assemble the camera together with its bracket, as described in the assembly instructions of the camera manufacturer.
2.
Connect the camera to the extension cable.
3.
CAUTION! When laying out the extension cable, ensure that there are no kinks and that no one can stumble over the laid-out cable.
4.
Connect the extension cable to the CAM port of the terminal.
5.
Secure the camera.
6.
Activate the camera.
