Mounting the optional adapter

If you want to mount your terminal in a vehicle that does not have a B column, you can install an adapter onto bracket 31322507. This adapter can be mounted around a pipe.
Adapter for round pipe systems, for pipes with a diameter of 20, 25 or 30 mm, item number: 31322508



Procedure



1.
Assemble the adapter together.

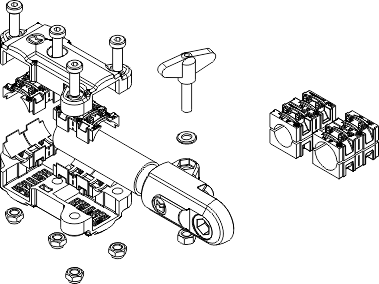

 Halter_VESA-08_Explosionsansicht
2.
Connect the adapter with the bracket.
 800_mit_Adapter
3.

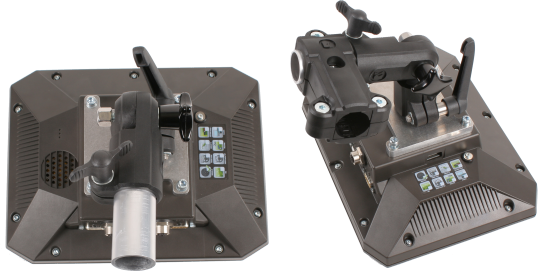

Put the bracket and the adapter in the desired position.
4.
Check that everything is firmly mounted.
