Raising and lowering the air cushions

This function raises or lowers the air cushions of the orchard or vineyard sprayer.



Path



This is how you reach the screen with this function:


 FS_JR3_Klappung-Menü


Use the following function keys to operate the function:


Function icon
Function
Raises the air cushions.
Lowers the air cushions.



Illustration

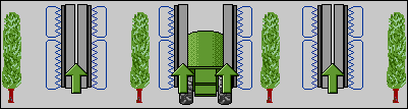

 SY_Luftsäcke_hoch
The air cushions are being raised. The arrows indicate the direction.

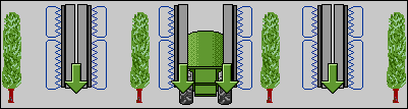

 SY_Luftsäcke_runter
The air cushions are being lowered. The arrows indicate the direction.
