Viewing the assignment of the joystick

The assignment of the joystick can only be viewed when your joystick works with the AUX1 auxiliary protocol.




Procedure


To display the button assignment on the screen:
þ
ME Joystick is configured.
1.
 FS_JR3_Weiter - Press until the  FS_JR3_Joystickbelegung aufrufen button appears.
2.
 FS_JR3_Joystickbelegung aufrufen - Press.
⇨

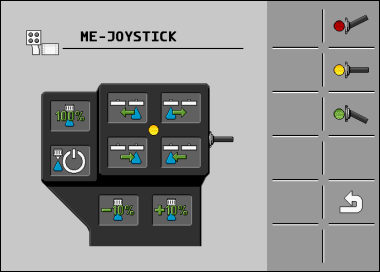

The button assignment appears:
 MA_Joystick gelb
3.
 FS_JR3_Joystick_rot,  FS_JR3_Joystick_gelb,  FS_JR3_Joystick_gruen - Press to view the assignment on each level.
4.
You can also activate the Preview mode.
