InstallationConnecting the terminal to the ISOBUS


Connecting the terminal to the ISOBUS

Connection to the ISOBUS serves to:
▪
supply the terminal with power,
▪
enable communication with other ISOBUS components.

You will need a different connection cable for this, depending on the model of your tractor.
▪
On tractors that have been retroactively upgraded with an ISOBUS basic vehicle harness manufactured by Müller-Elektronik, connect the terminal to the basic vehicle harness using the Sub-D connector cable.
 Smart430_mit Kabel 2_freistellen

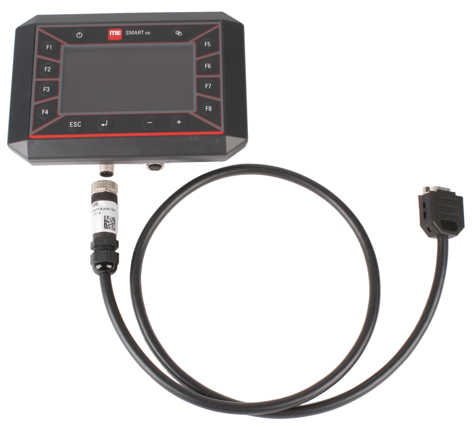

SMART430 - Connection cable with Sub-D socket. Part no.: 31322596
▪
On tractors that are equipped with ISOBUS as standard and have an ISOBUS in-cab socket, you will need the connection cable with a CPC socket:
 Smart430-mit Kabel 1

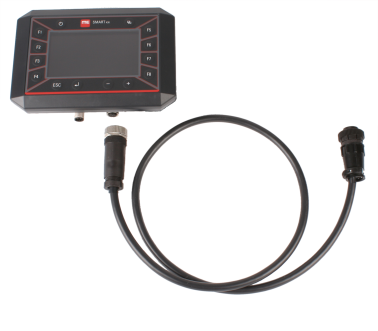

SMART430 - Connection cable with CPC socket. Part no.: 31322597


Procedure



1.
Plug the connection cable into port A.
2.
Plug the connector cable into the ME basic vehicle harness or the ISOBUS in-cab socket.
3.
Screw the plug on tight.
