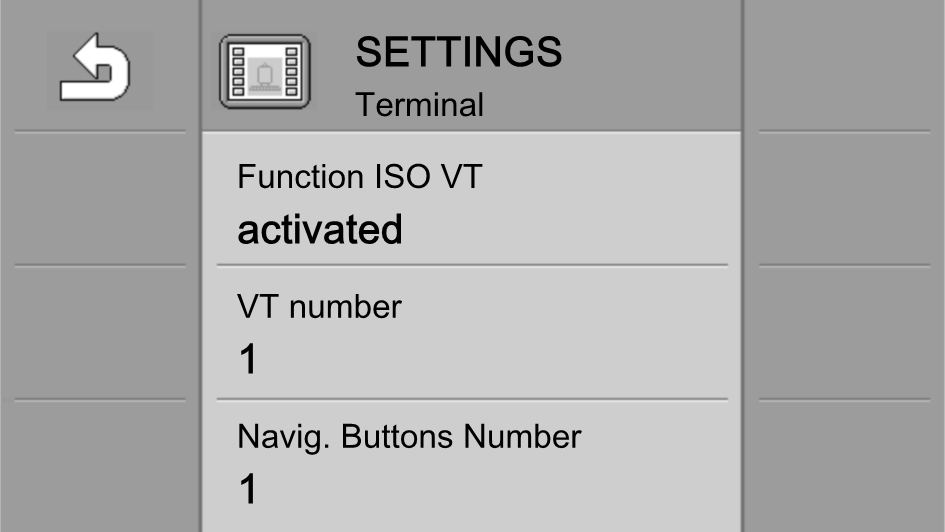

Function ISO VT

Activates and deactivates communication through the ISOBUS interface.

VT number

If there are multiple terminals on the ISOBUS, each terminal can be assigned with a so-called instance number. The instance number serves to assign job computers to terminals.

Navig. Buttons Number

If you notice that the connected job computer is not displaying all of the function keys, change the value for this parameter to 2.

If this is supported by the job computer, you then have the option of using the F4 and F8 keys to display function keys that are not shown otherwise.

1 - 7 job computer keys and one navigation key are displayed.

2 - 6 job computer keys and one navigation key are displayed. This setting improves the display when the keys for moving left and right in the job computer application should also be displayed on the left and right side of the terminal screen.
