Installing the flow meter
Magnetic inductive liquid flow meters are suitable as a flow meter.
Functional principle
An electrically conductive liquid flows through a magnetic field in an electrically insulated pipe. The magnetic field is generated by a current flowing through a pair of field coils. A voltage is generated in the liquid, which can be measured by the sensor.

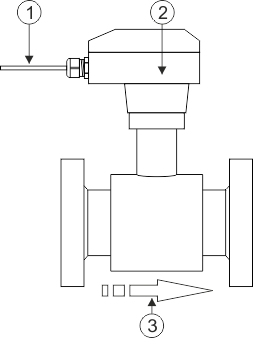

Schematic overview

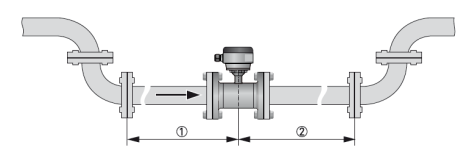

Inlet und outlet

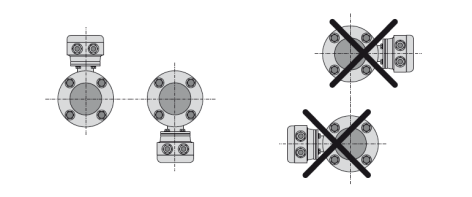

Mounting position
During installation, also observe all the information in the flow meter manual.
Assignment
