Installing the speed and position sensors

Reed contact sensors are suitable as speed and position sensors.


 Reedkontaktsensor


Functional principle


A signal is sent when the red side of a magnet is held in front of the red cap of the sensor. This creates a connection between the signal line and the ground wire of the sensor.

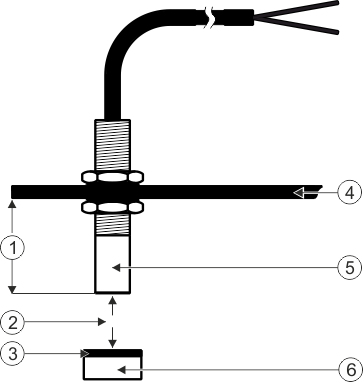

Schematic overview


 Reedkontaktsensor
Min. 25 mm
Attachment angle
Distance 15-25mm
Sensor (red cap)
South pole of the magnet (red side)
Magnet (nonmagnetic attachment, e.g. V2A, copper, brass)


Connector pin assignment






3-pin connector
Pin
Cable color
Designation
1
green
Signal
2
brown

3
white
0 VE






3-pin AMP connector
Pin
Cable color
Designation
1
white
0 VE
2
brown
12 VE
3
green
Signal
