System overview

The system consists of one or several job computers that are mounted on the slurry tanker and control the operation.

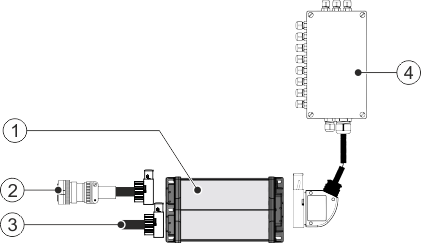

Small system with one job computer
ECU-Midi job computer
Junction box
ISOBUS cable
CAN termination

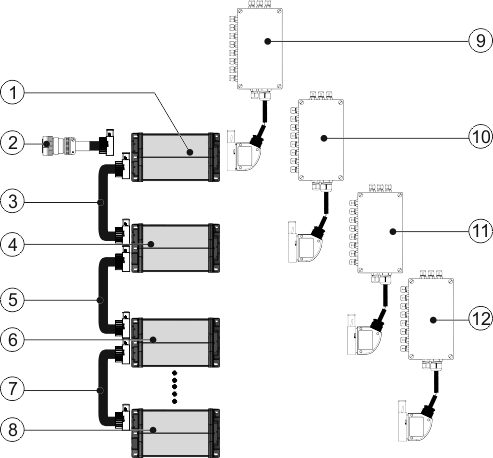

Large system with 4 job computers, max. 7 job computers are possible
1. ECU-Midi job computer
Junction box 1st Job computer
ISOBUS cable
Connecting cable between the job computers
Junction box 2nd Job computer
2. ECU-Midi job computer
Connecting cable between the job computers
Junction box 3rd Job computer
3. ECU-Midi job computer
Connecting cable between the job computers
Junction box 4th Job computer
4th ECU-Midi job computer


Each job computer is responsible for controlling selected functions of the slurry tanker and receives signals from selected sensors. For systems with multiple job computers, identical job computers and junction boxes are used respectively.


In the slurry tanker configurator, you can see which sensors and actuators can be connected to the junction box.


Example

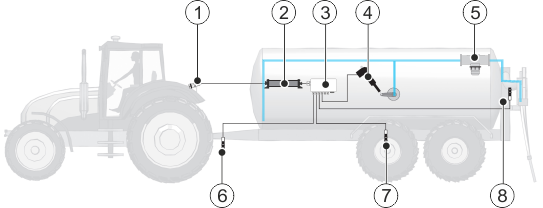

The following diagram shows an example of how an implement can be structured:


ISOBUS power socket
Flow meter
ISOBUS job computer
Rotational speed sensor
Junction box
Speed sensor
Linear actuator
Work position sensor
