SLURRY-Controller MIDI 3.0 - Installing the rotational speed sensors

Installing the rotational speed sensors

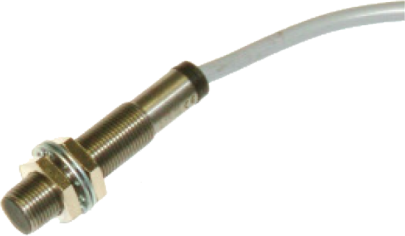

Inductive sensors are suitable as rotational speed sensors.

Functional principle

A signal is measured when the magnet field of the sensor is influenced by an object made of magnetically conductive metal. Stainless steel is not suitable for this.

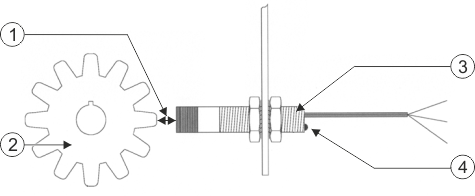

Schematic overview

	Reacting distance (depends on the sensor)		Sensor
	Metal object (e.g. gearwheel)		Control LED

Connector pin assignment

3-pin AMP connector

Pin	Cable color	Designation
1	blue	0 VE
2	brown	12 VE
3	black	Signal
