Anbau- und Bedienungsanleitung - Installing the working position sensors

Installing the working position sensors

Reed contact sensors are suitable as working position sensors.

Functional principle

A signal is sent when the red side of a magnet is held in front of the red cap of the sensor. This creates a connection between the signal wire and the ground wire of the sensor.

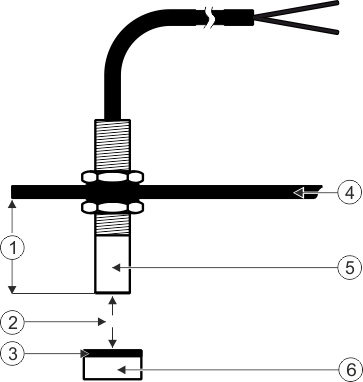

Schematic overview

	Min. 25 mm		Attachment angle
	Distance 15-25mm		Sensor (red cap)
	South pole of the magnet (red side)		Magnet (nonmagnetic attachment, e.g. V2A, copper, brass)

Connector pin assignment

3-pin AMP connector

Pin	Cable colour	Designation
1	white	0VE
2	brown
3	green	Signal

Spare part number

Item number	Designation
30303615	Reed contact sensor with AMP plug
