Installing the fill level sensor

Capacitive sensors are suitable as fill level sensors.


 Kapazitivsensor


Functional principle


A signal is sent when the flat upper side of the sensor is covered, e.g. with seed.

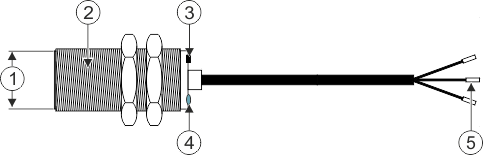

Schematic overview


 Kapazitivsensor
Flat upper side of the sensor
LED; shows whether the sensor reacts
Capacitive sensor
Wire ferrules
Adjustment screw to change the reacting distance




Connector pin assignment






3-pin AMP connector
Pin
Cable color
Designation
1
blue
0VE
2
brown
12VE
3
black
Signal


Spare part number


Item number
Designation
30303650
Capacitive sensor with 3-pin AMP connector
